HBEPS

Lifting of HEA-HEB-IPE-IPN profiles

LIFTING PROFILES UP TO 24.000MM

DESCRIPTION

Experience true autonomy with our groundbreaking electro permanent magnetic beam, thanks to its integrated rechargeable battery pack.

No power supply cable is needed, as this innovative beam operates independently.

In just a few seconds, the electric pulse is utilized solely for molecularly reversing the magnetic modules, while the actual force is generated by permanent magnets.

With the magnetic beam functioning independently of electric current, it ensures 100% safety.

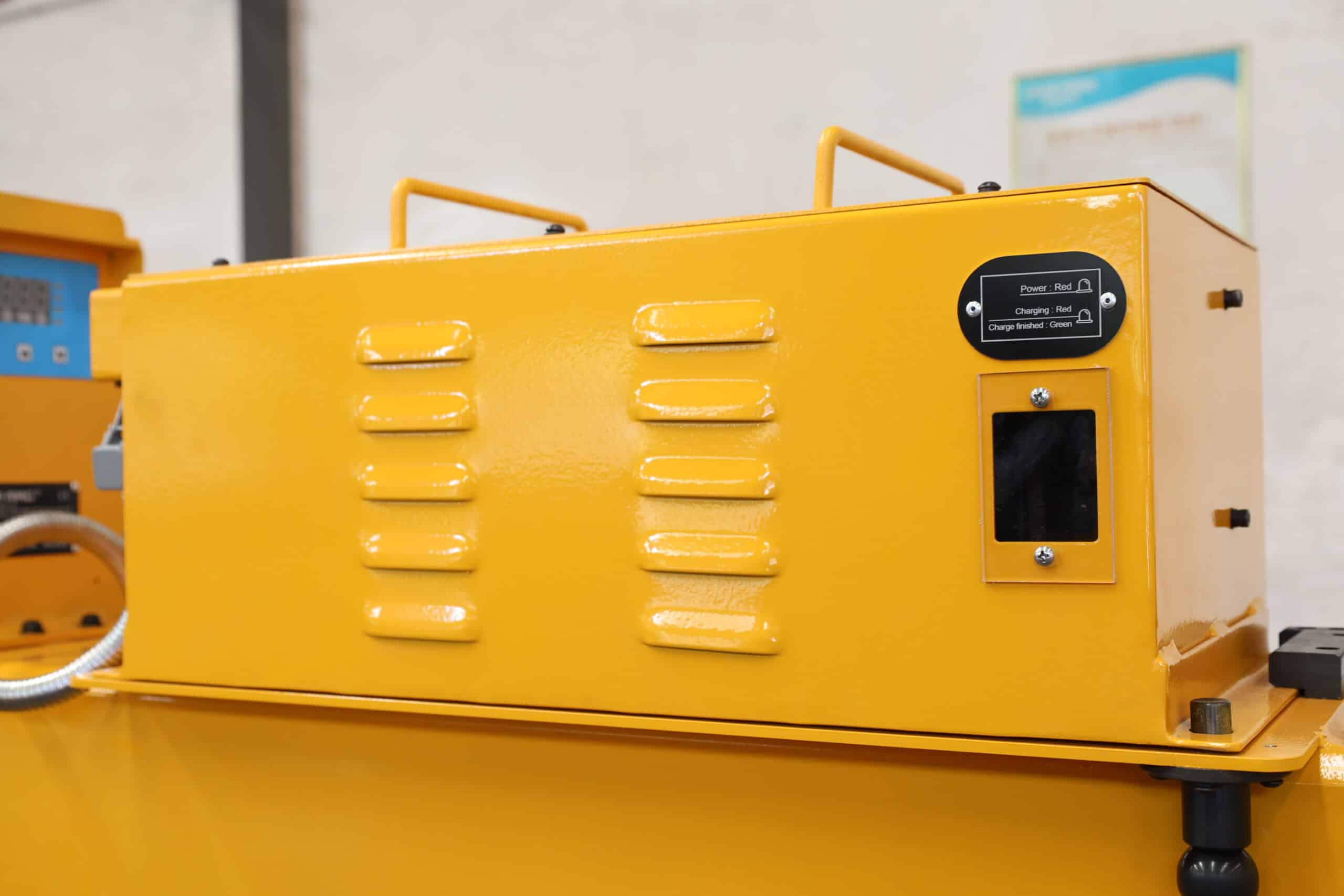

Benefit from extended operational time, as the low power consumption allows the rechargeable battery pack to provide approximately 300 cycles of autonomy.

Inquiry
ModelSWL
(kg)
HEA-HEB-IPE-IPN (mm)Length
min - max
(mm)
Qty
EPM Modules
Weight
(kg)
HBEPS-650A65080-600500 - 3.0001100
HBEPS-06-013130080 - 6001.000 - 6.0002595
HBEPS-10-017170080 - 6001.000 - 10.0002720
HBEPS-12-026260080 - 6001.000 - 12.00041220
HBEPS-15-026200080 - 6001.000 - 15.00041220
HBEPS-18-039390080 - 6001.000 - 18.00061831
HBEPS-24-052520080 -6001.000 - 24.000 6 2200
