RCMHF
Rubber covered Magnet with thread Sleeve
FIXING COMPONENTS WITHOUT DRILLING
FEATURES

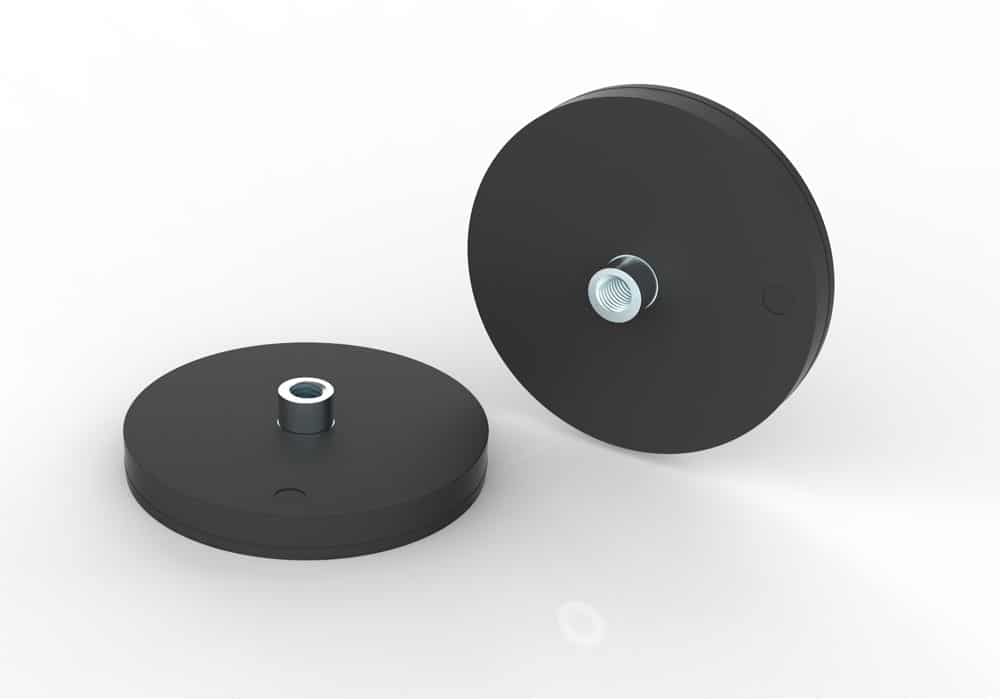

These neodymium rubberized magnets with screw bushing offer extended threading capability, allowing easy integration with screws.
Their rubber coating safeguards delicate surfaces from scratches, while the durable TPR material ensures long-lasting protection.
Ideal for delicate surfaces requiring secure yet gentle magnetic attachments.
Inquiry

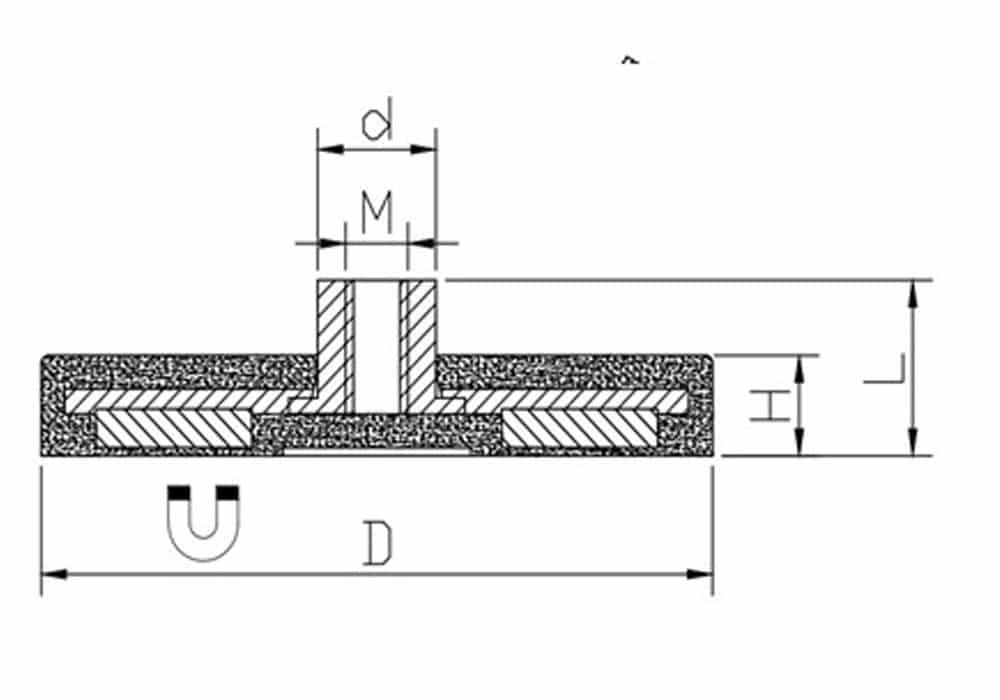

| MODEL | Ø (MM) | H (MM) | THREAD (MM) | Ø d (MM) | L (MM) | HOLDING FORCE (KG) | SHEAR FORCE (KG) | MAX. TEMP. (°C) | WEIGHT (G) |
|---|---|---|---|---|---|---|---|---|---|
| RCMHF31 | 31 | 6 | M5 | 8 | 11,5 | 8,9 | 1,9 | 60 | 22 |
| RCMHF31SS | 31 | 6 | M5 | 8 | 11,5 | 8,9 | 1,9 | 60 | 22 |
| RCMHF43 | 43 | 6 | M4 | 8 | 10,5 | 10 | 3 | 60 | 30 |
| RCMHF43SS | 43 | 6 | M4 | 8 | 10,5 | 10 | 3 | 60 | 30 |
| RCMHF66 | 66 | 8,5 | M6 | 10 | 15 | 25 | 8,5 | 60 | 105 |
| RCMHF66SS | 66 | 8,5 | M6 | 10 | 15 | 25 | 8,5 | 60 | 105 |
| RCMHF88 | 88 | 8,5 | M6 | 12 | 17 | 55 | 12,5 | 60 | 192 |
| RCMHF88SS | 88 | 8,5 | M6 | 12 | 17 | 55 | 12,2 | 60 | 192 |
