MAGNETIC GRIPPERS

for Gantry Robots

MAGNETIC MODULES FOR GANTRY ROBOTS

DESCRIPTION

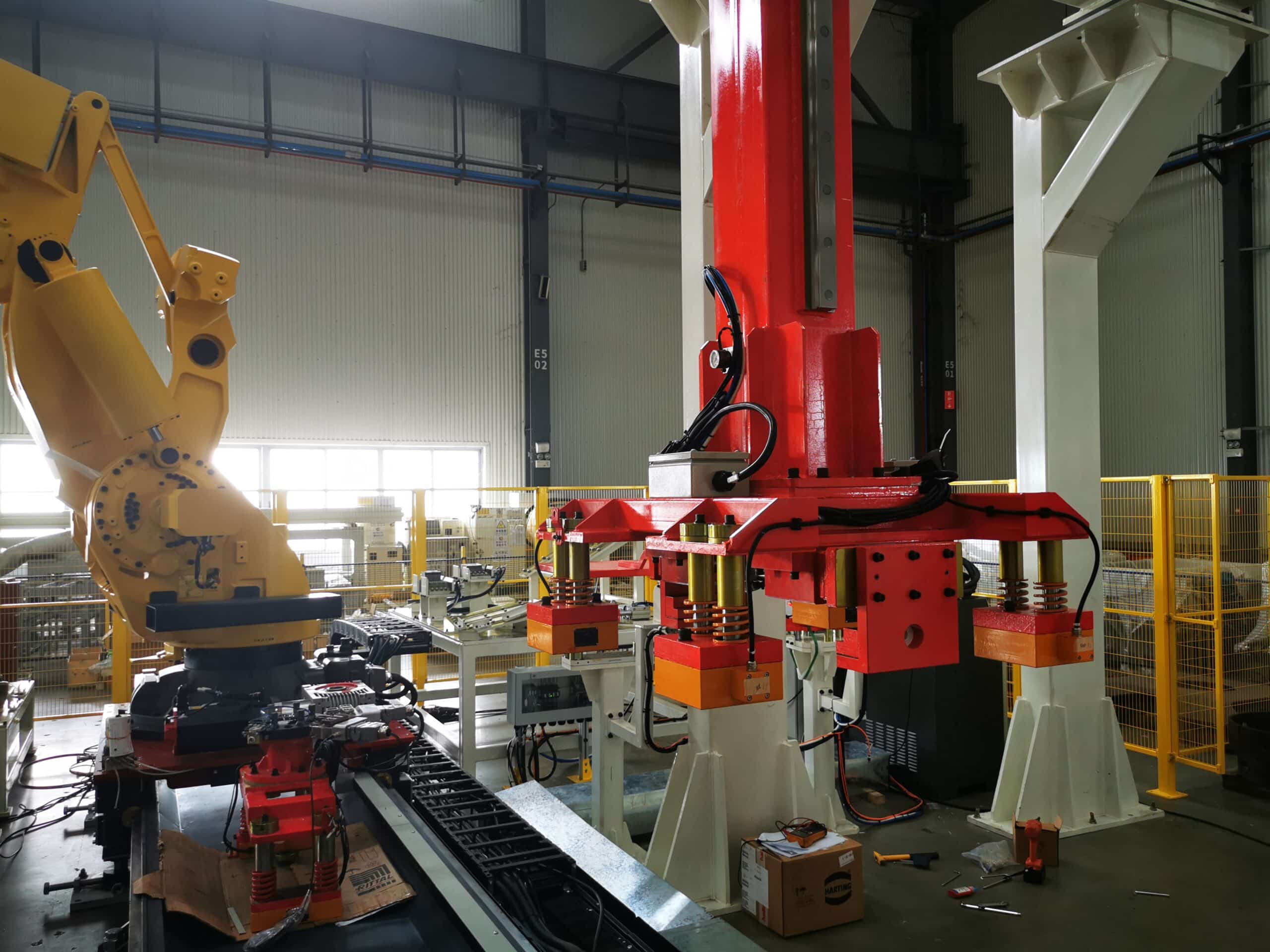

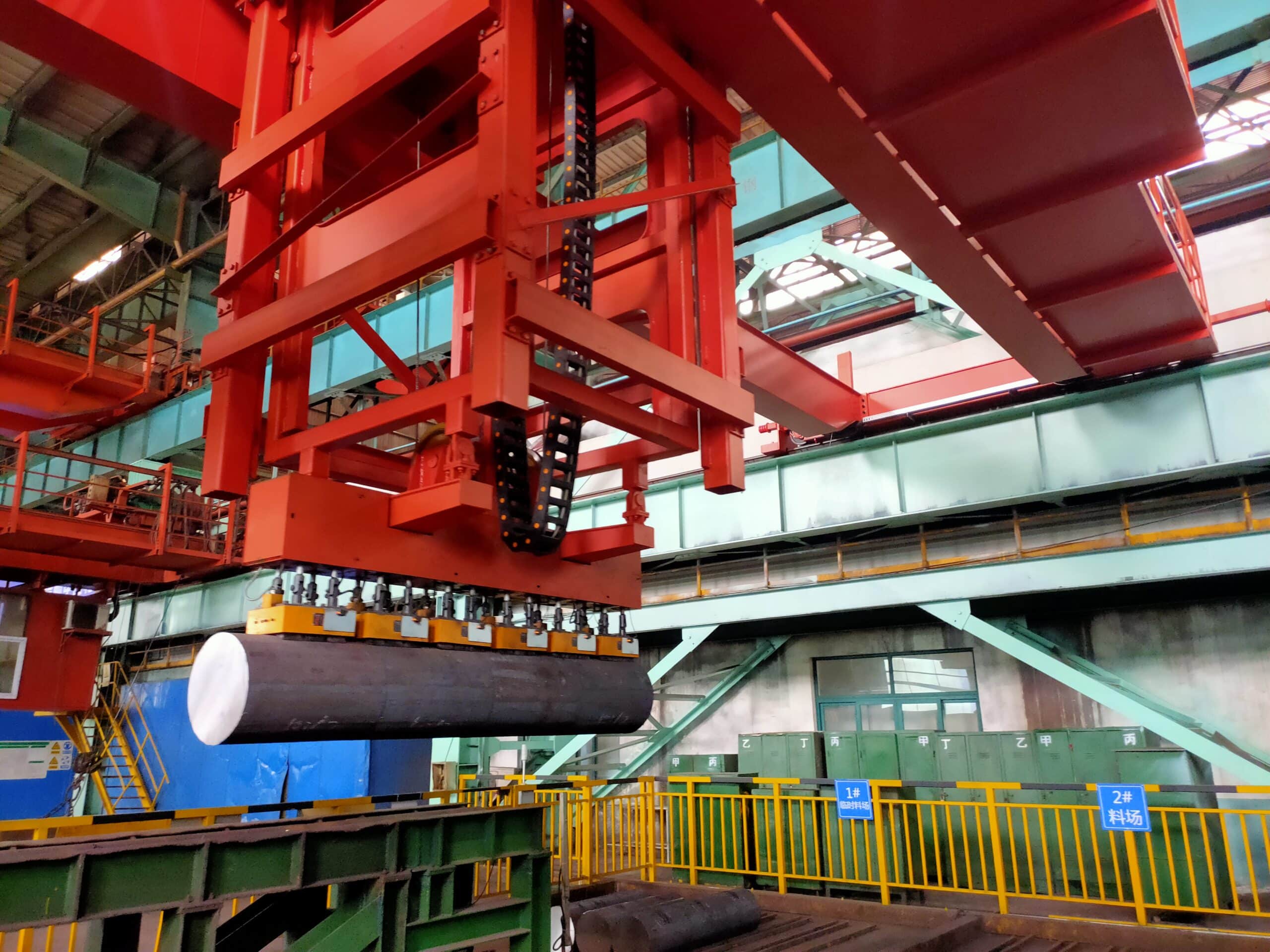

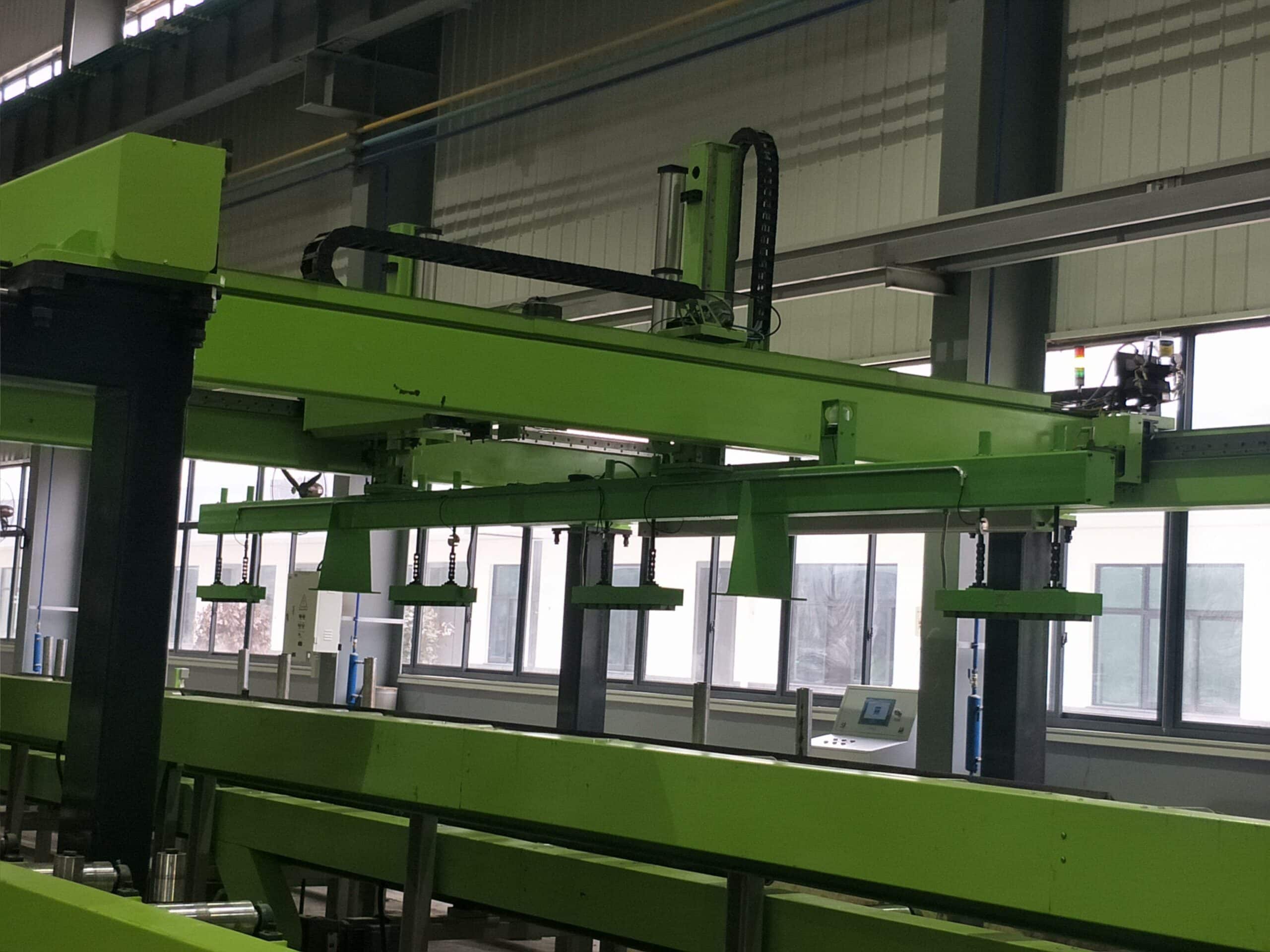

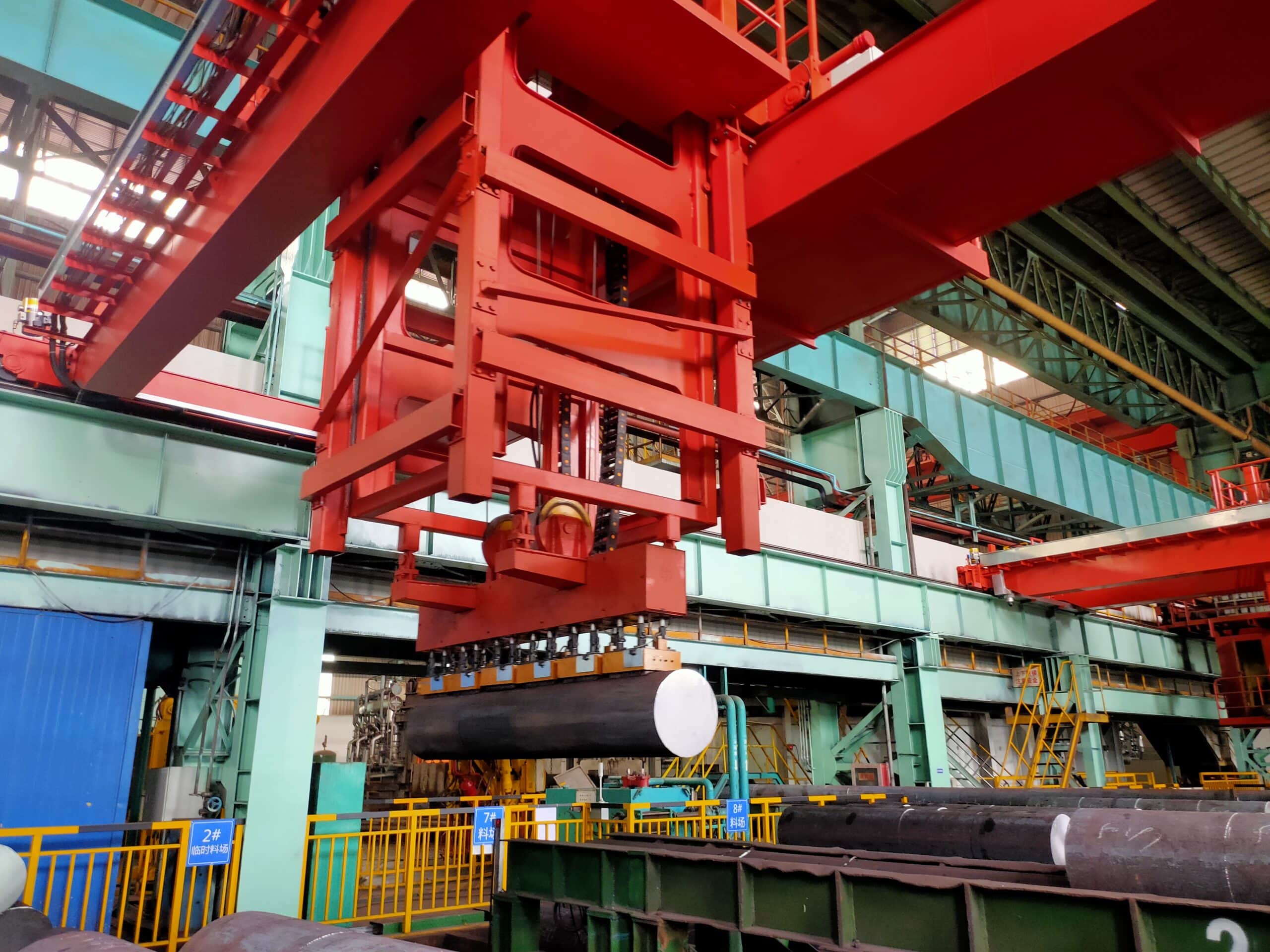

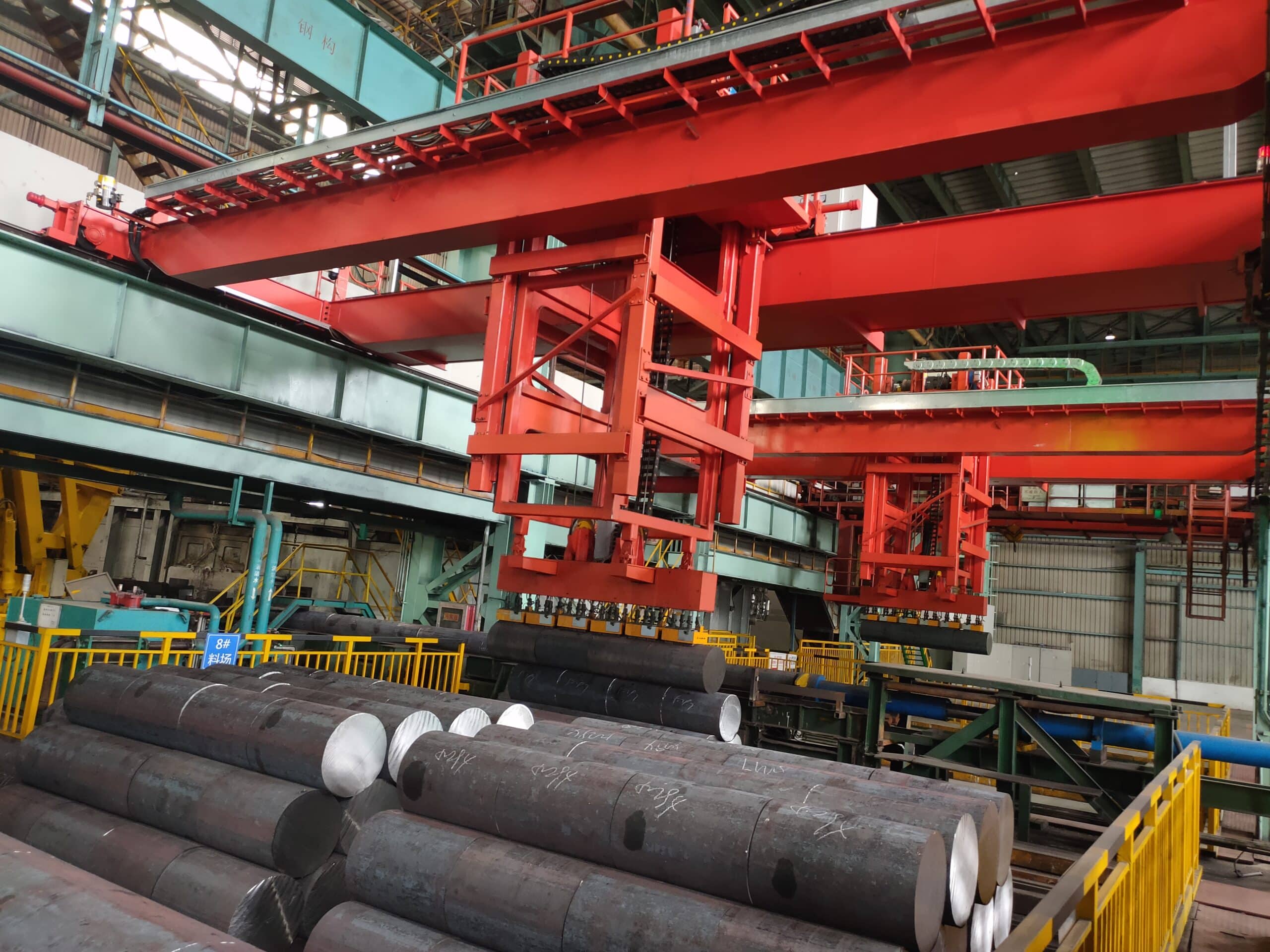

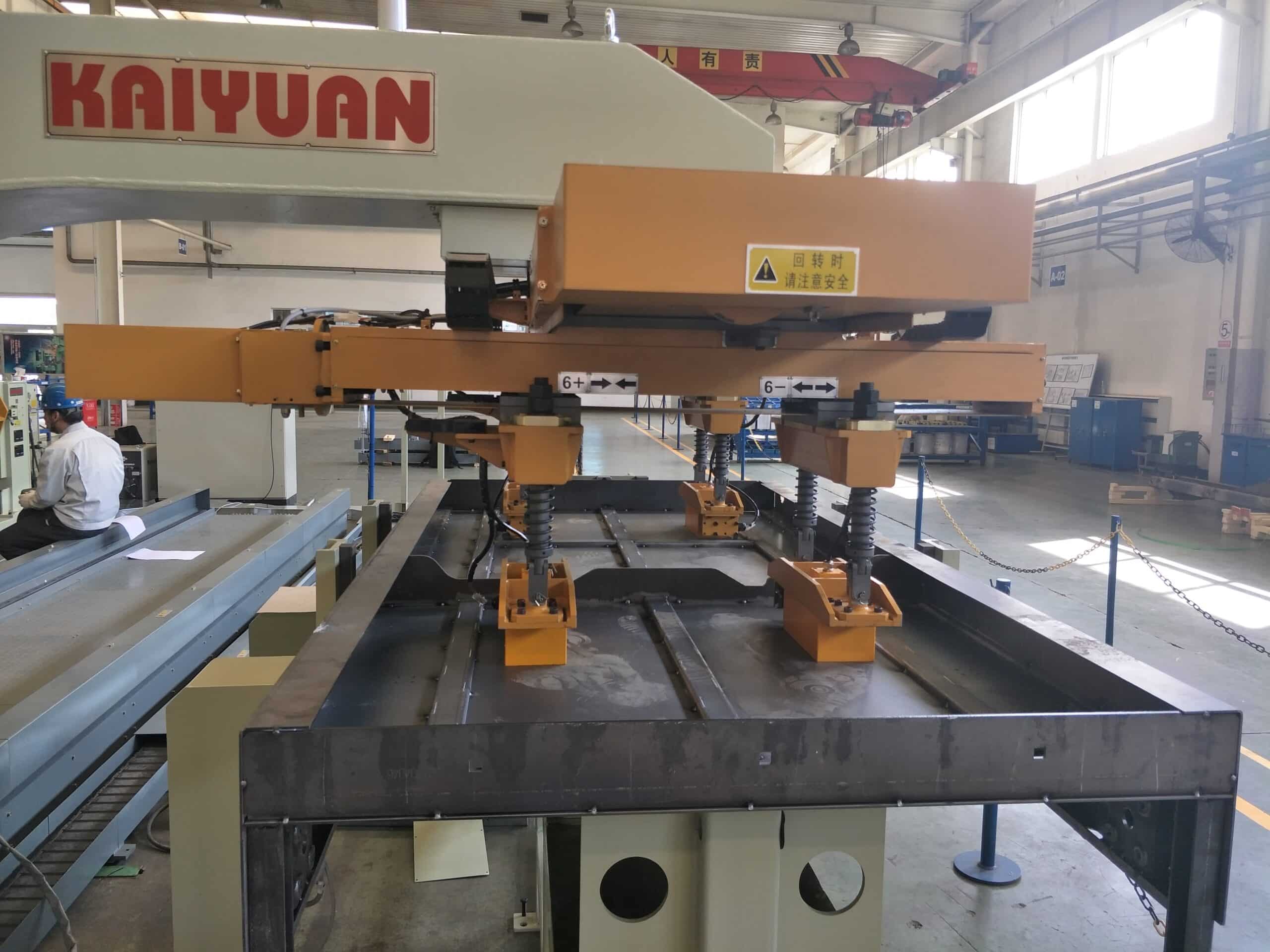

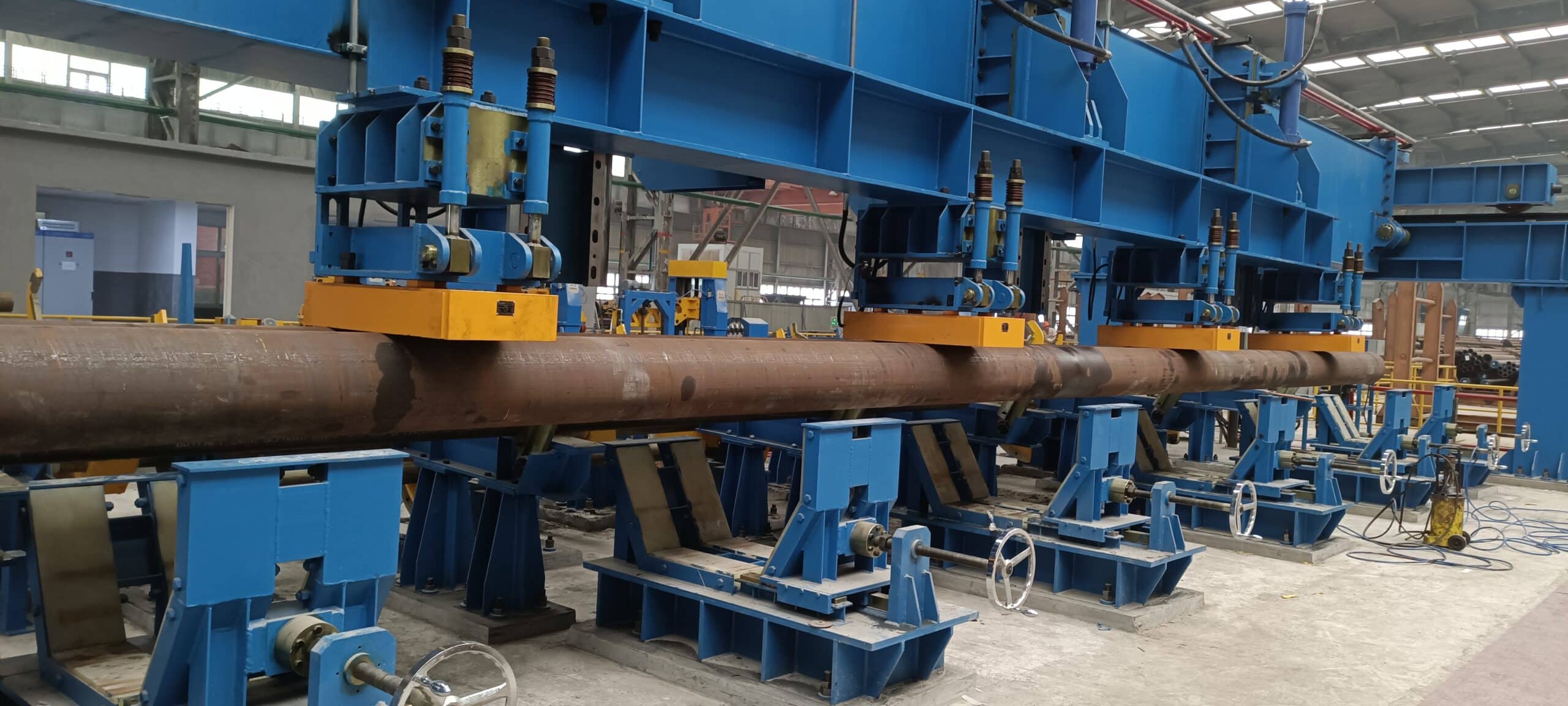

Electro-permanent magnets find application as integrated magnetic grippers on gantry robots, enabling efficient picking, lifting, loading, placing, and transferring of ferrous parts in automation lines.

Utilizing magnetic handling streamlines processes, reducing lead time and the number of required actions for automation.

These magnetic grippers can be tailor-designed and manufactured to meet specific customer requirements regarding size, shape, and clamping force, providing flexibility and customization options.

Inquiry
ModelRated lifting force
(Material Thickness ≥ 16 mm)
Min. Material ThicknessMax. breakaway ForceL (mm)W (mm)H (mm)Weight (kg)
HEPMP-1510P50160kg≥ 6mm650kg150mm100mm72mm8kg
HEPMP-320P50320kg≥ 6mm1300kg180mm180mm72mm17kg
HEPMP-500P50500kg≥ 6mm1950kg250mm180mm72mm23kg
HEPMP-720P50720kg≥ 6mm2925kg250mm250mm72mm32kg
HEPMP-2012P70320kg≥ 8mm1100kg190mm110mm72mm12kg
HEPMP-2020P70640kg≥ 8mm2200kg200mm200mm72mm22kg
ModelRated lifting force (Material Thickness ≥ 16 mm)Min. Material ThicknessMax. breakaway ForceL (mm)W (mm)H (mm)Weight (kg)
HEPMP-30P30B30kg2-12mm120kg100mm54mm58mm2.2kg
HEPMP-60P30B60kg2-12mm200kg100mm100mm58mm4.6kg
HEPMP-100P30B100kg2-12mm400kg140mm100mm58mm5.5kg
HEPMP-200P30B200kg2-12mm800kg260mm100mm58mm10kg
HEPMP-60P3060kg3-12mm220kg110mm60mm58mm3.7kg
HEPMP-1406P3090kg3-12mm320kg140mm60mm58mm4.0kg
HEPMP-1906P30120kg2-12mm440kg190mm60mm58mm4.8kg
ModelRated lifting force (Material Thickness ≥ 16 mm)Min. Material ThicknessMax. breakaway ForceL (mm)W (mm)H (mm)Weight (kg)
HEPMSP-60P45×2460kg≥ 3mm240kg145mm90mm81mm8kg
HEPMSP-100P45×24100kg≥ 3mm360kg200mm120mm81mm12kg
HEPMSP-200P45×24200kg≥ 3mm600kg370mm105mm81mm17kg
HEPMSP-300P45×24300kg≥ 3mm900kg435mm105mm81mm23.5kg
Customized round magnetRated lifting forcePlate thicknessMax. breakway ForceDHWeight
HEPM1-253kg≥ 2mm15kg25mm35mm120g
HEPM1-40-A20kg≥ 4mm80kg40mm48mm420g
HEPM1-40-B20kg≥ 4mm80kg40mm40mm350g
HEPM1-5030kg≥ 6mm100kg49mm45mm650g
HEPM1-60-A50kg≥ 8mm200kg59mm50mm1kg
HEPM1-60-B50kg≥ 8mm200kg59mm50mm1kg
HEPM1-7590kg≥ 12mm400kg78mm48mm1.5kg
HEPM1-100150kg≥ 16mm650kg100mm65mm3.5kg
HEPM1-125250kg≥ 20mm1200kg125mm65mm6kg
HEPM1-150320kg≥ 25mm1500kg158mm70mm9.5kg
