HBEPP/S
Lifting single steel Strips
LIFTING STEEL STRIPS
DESCRIPTION
Handling steel strips can be challenging due to their length and tendency to deflect.
However, the HBEPP/S magnetic beam offers a slim design that makes positioning effortless between storage racks.
With its integrated rechargeable battery pack, there’s no need for a power cable, ensuring maximum convenience and flexibility.

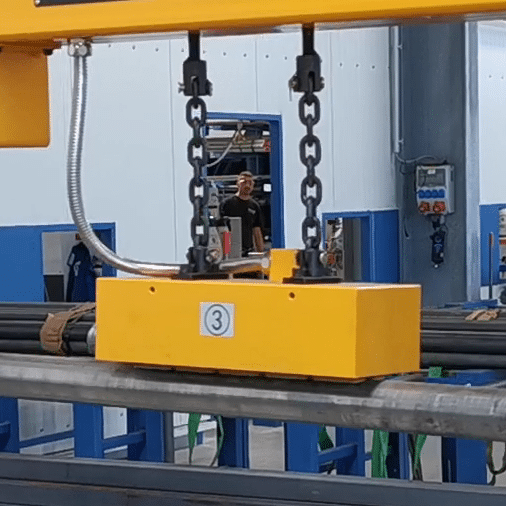

Additionally, the pole foot can be equipped with an optional V-shape, enabling the lifting of steel shafts as well.

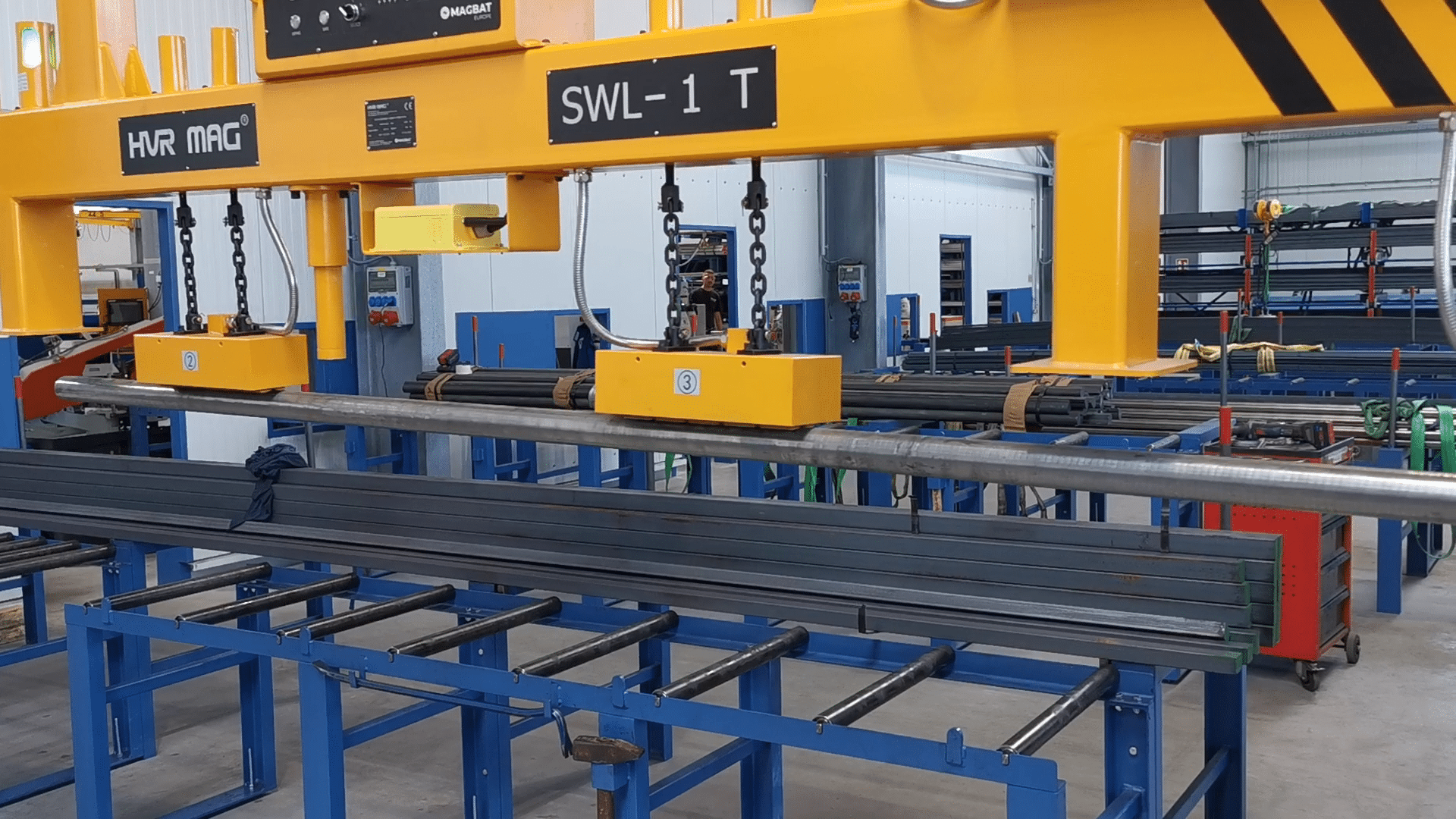

The HBEPP/S magnetic beam is the perfect solution for effectively and safely lifting steel strips, providing an ideal tool to streamline your operations.
InquiryFEATURES
- Welded beam in structural steel, including Chains and Lifting Ring.
- Safety Factor 3:1 at airgap 0,4 mm.
- Electro permanent magnetic modules elastically suspended for perfect adaption on the steel profile.
- Integrated rechargeable Battery Group
- Electronic control unit on board with following functions: PICK-UP/FULLMAG/SAFE/DEMAG/4 Level Power Selection/Module selection
- Radio remote control for PICK-UP/FULLMAG/SAFE/DEMAG

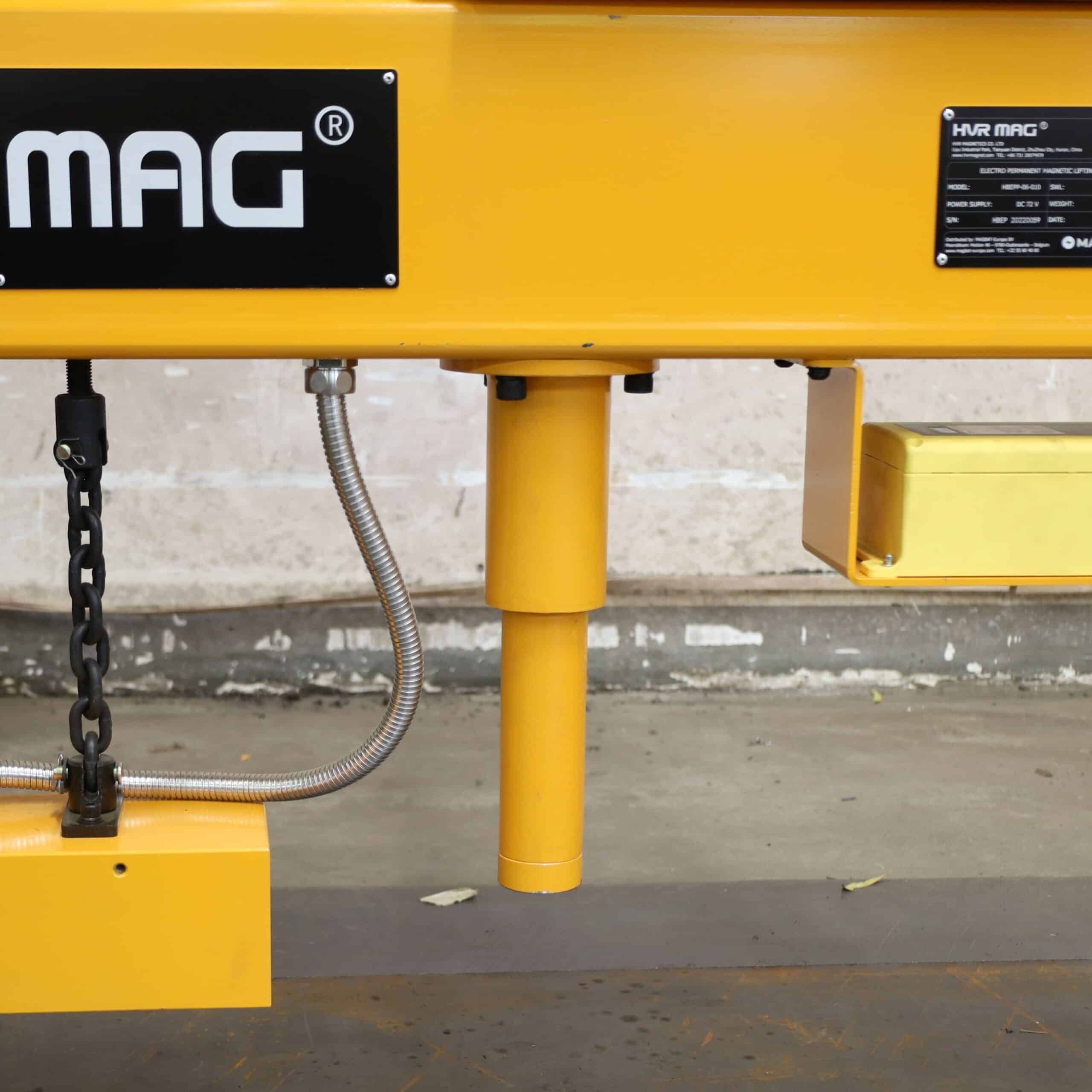

- Proximity switch against accidental demagnetization in the Air.
- Lamp Block for indication of the status of the magnet.
9 Safety Features
| Model | SWL (kg) | Min. Thickness (mm) | Length min - max (mm) | Width min - max (mm) | Qty EPM Modules | Weight (kg) |
|---|---|---|---|---|---|---|
| HBEPP-06-006/S | 600 | 5 | 400 - 6.000 | 60 - 400 | 4 | 435 |
| HBEPP-06-010/S | 1000 | 5 | 400 - 6.000 | 60 - 400 | 4 | 950 |
| HBEPP-06-015/S | 1500 | 5 | 400 - 6.000 | 150 - 1.000 | 4 | 470 |
| HBEPP-12-030/S | 3000 | 6 | 2.300 - 12.000 | 150 - 1.000 | 6 | 1300 |
| HBEPP-15-025/S | 2500 | 5 | 2.000 - 15.000 | 200 - 800 | 8 | 1090 |
| HBEPP-16-045/S | 3000 | 6 | 2.300 - 16.000 | 150 - 1.000 | 8 | 1750 |
