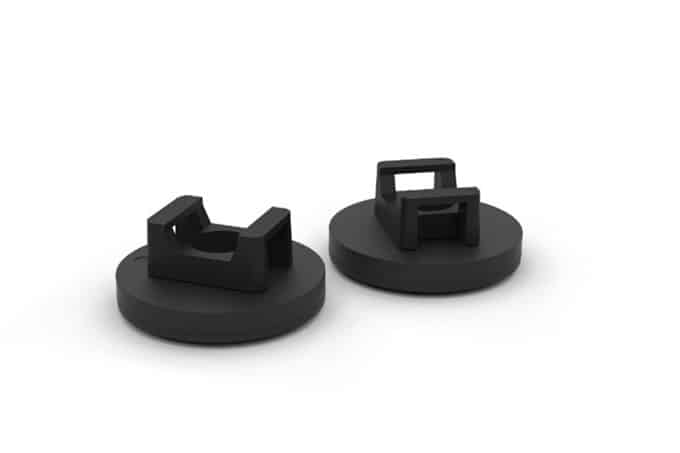

RCMSA
Rubber coated magnet with Saddle
FASTENING POWER AND DATA CABLES
FEATURES
The Neodymium magnet system, coated with black rubber, is ideal for smooth and thin surfaces, offering scratch protection.
With neodymium’s strong magnetic force, it ensures excellent sliding capability.
Additionally, this system includes a saddle, a plastic bracket designed for easy cable attachment using straps or cable ties.
Inquiry

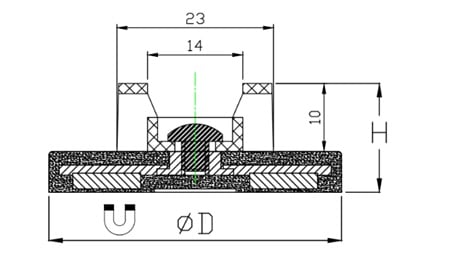

| MODEL | Ø (MM) | H (MM) | HOLDING FORCE (KG) | SHEAR FORCE (KG) | MAX. TEMP. (°C) | WEIGHT (G) |
|---|---|---|---|---|---|---|
| RCMSA31 | 31 | 16 | 8,9 | 1,9 | 60 | 26 |
| RCMSA43 | 43 | 16 | 10 | 3 | 60 | 30 |
