HM5

Loading and unloading of cutting machines

BOOST YOUR CUTTING MACHINES' PRODUCTION CAPACITY

DESCRIPTION

HM5-Beams have been specifically designed to efficiently remove cut pieces, including any remaining material, from the cutting table in a single motion.

By doing so, they effectively reduce labor costs while significantly boosting productivity.

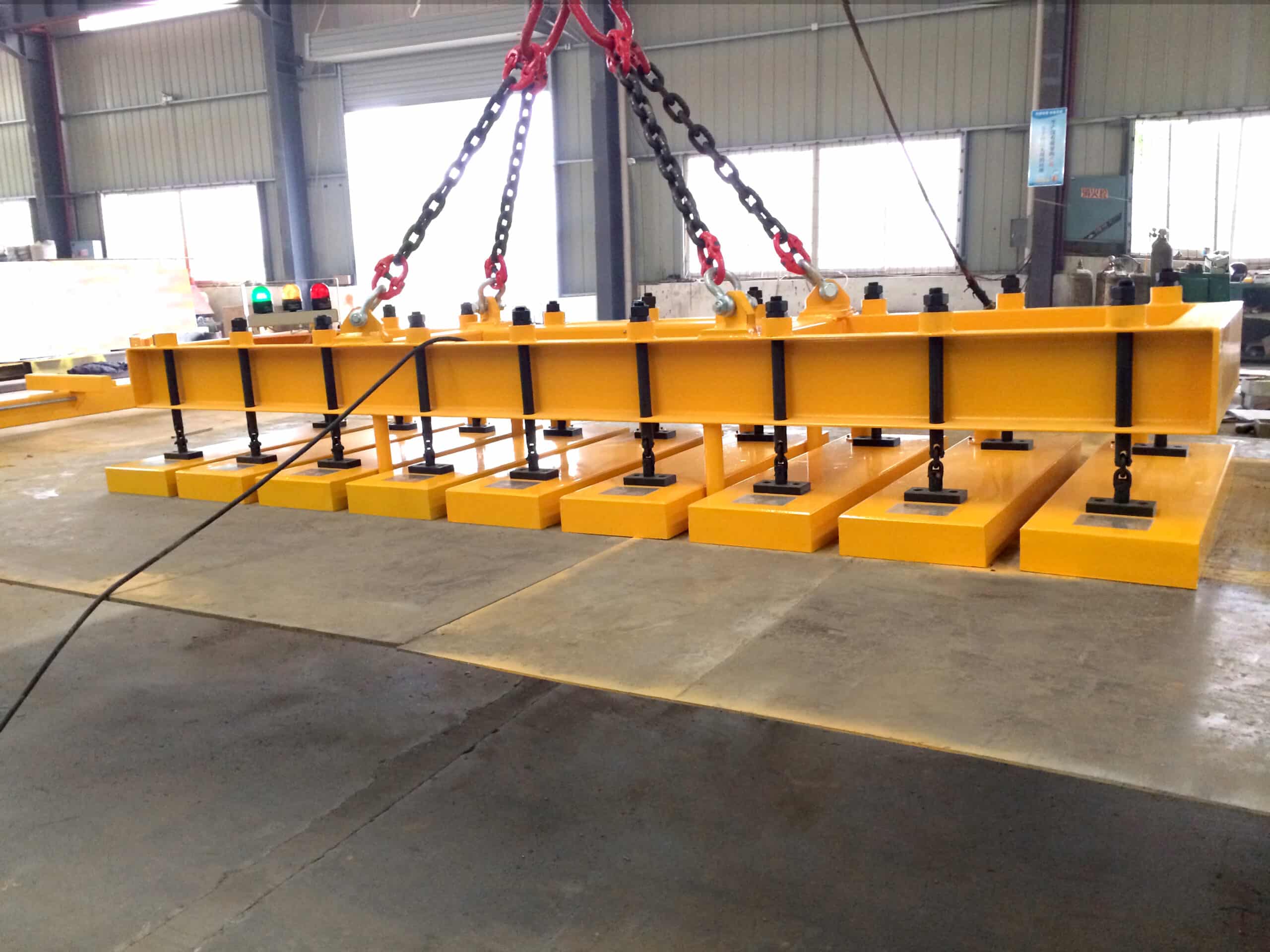

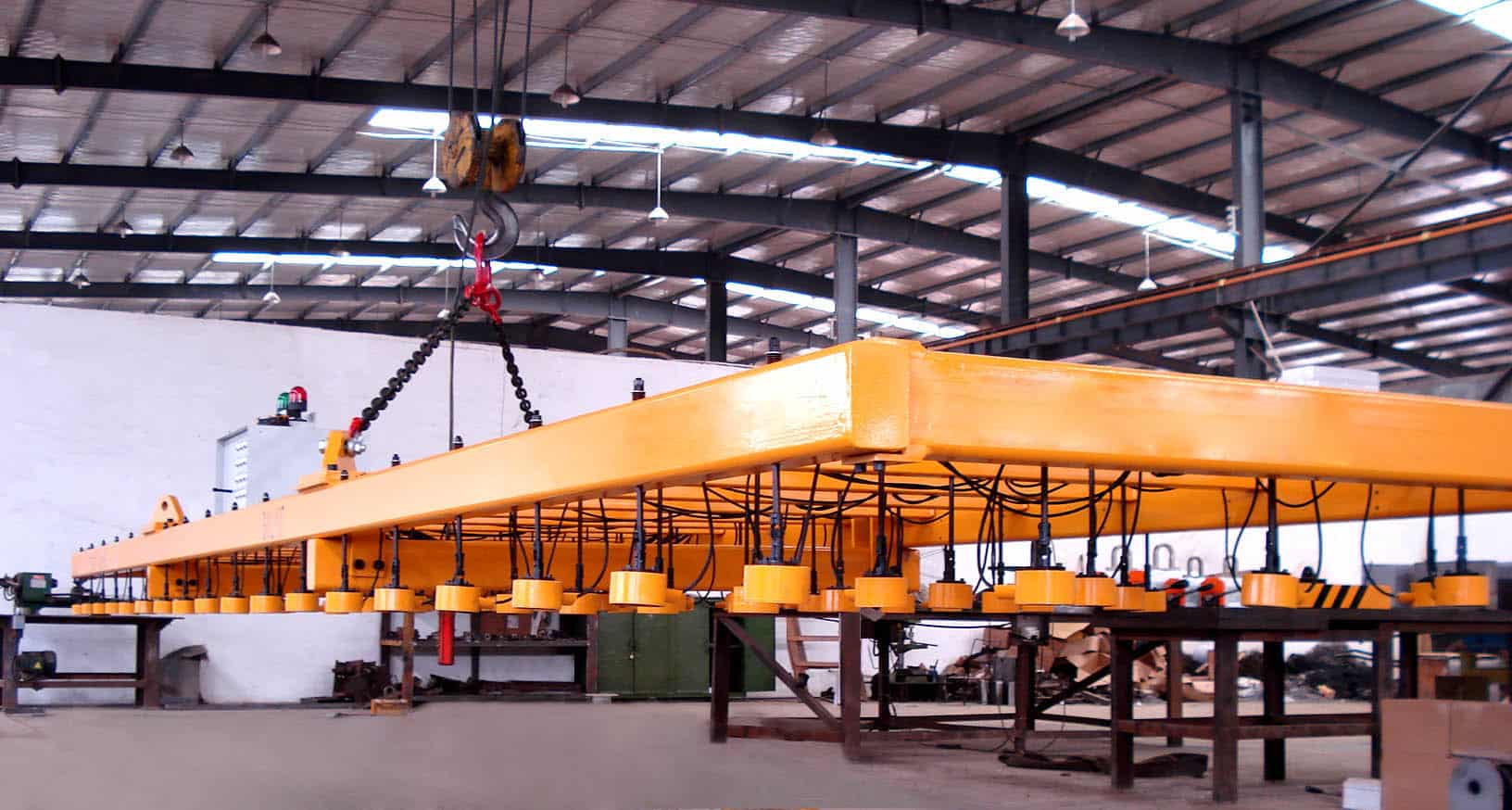

These magnetic beams consist of numerous electro permanent magnetic modules that are elastically suspended to ensure optimal contact with the workpiece.

To cater to the specific surface and cut pieces that need to be cleared, users can select the appropriate zone of magnetic modules.

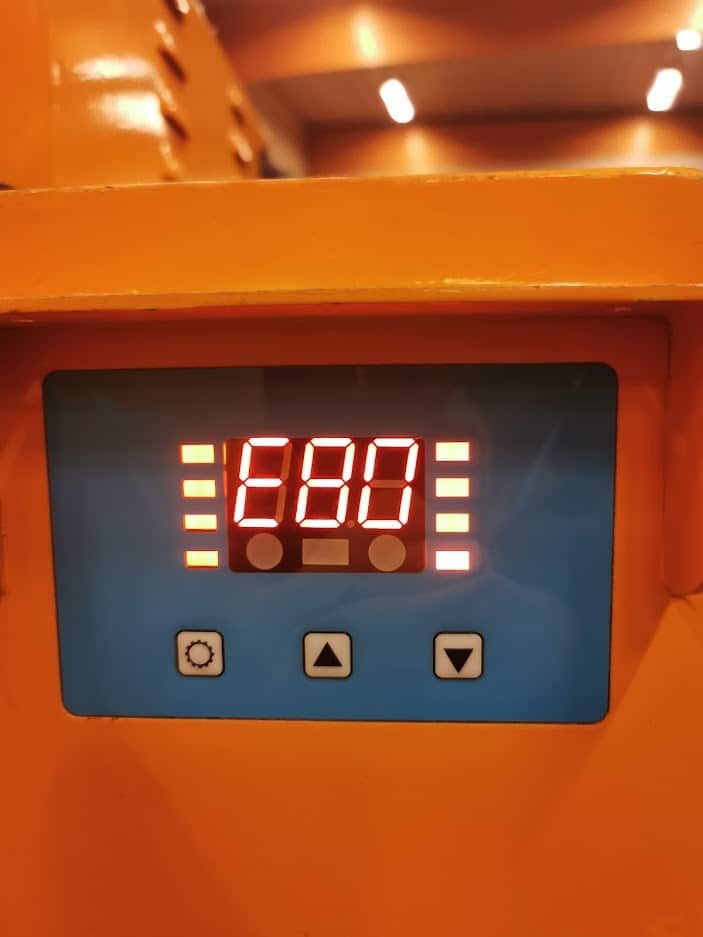

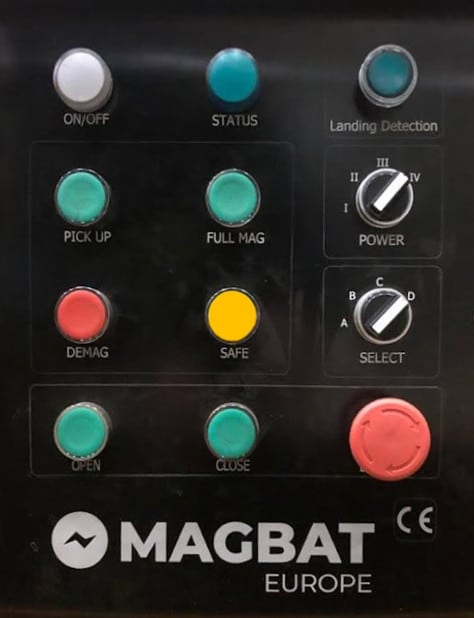

Control of the HM5-Beams can be achieved either through the integrated digital push buttons or by utilizing the provided standard radio remote control.

Inquiry

OXY & PLASMA CUTTING

ModelMax. Length
(mm)
Max. Width
(mm)
Thickness
(mm)
Min. cut parts
(mm)
Lifting Capacity
(Kg)
HM5-03-015/P3.0001.5005 - 40250*2501.500
HM5-06-040/P6.0002.0005 - 40250*2504.000
HM5-06-060/P6.0002.5005 - 40250*2506.000
HM5-09-085/P9.0003.0005 - 40250*2508.500
HM5-12-115/P12.0003.0005 - 40250*25011.500

LASERCUTTING

ModelMax. Length
(mm)
Max. Width
(mm)
Thickness
(mm)
Min. cut parts
(mm)
Lifting Capacity
(Kg)
HM5-03-015/L3.0001.5001,5-3080*801.000
HM5-06-020/L6.0001.5001,5-3080*802.000
HM5-06-030/L6.0002.0001,5-3080*803.000
HM5-09-040/L9.0002.0001,5-3080*804.000

OXY CUTTING

ModelMax. Length
(mm)
Max. Width
(mm)
Thickness
(mm)
Min. cut parts
(mm)
Lifting Capacity
(Kg)
HM5-03-040/O3.0002.0005-80300*3004.000
HM5-06-100/O6.0002.5005-80300*30010.000
