HR

Lifting of rounds

LIFTING OF CILINDRICAL PARTS

DESCRIPTION

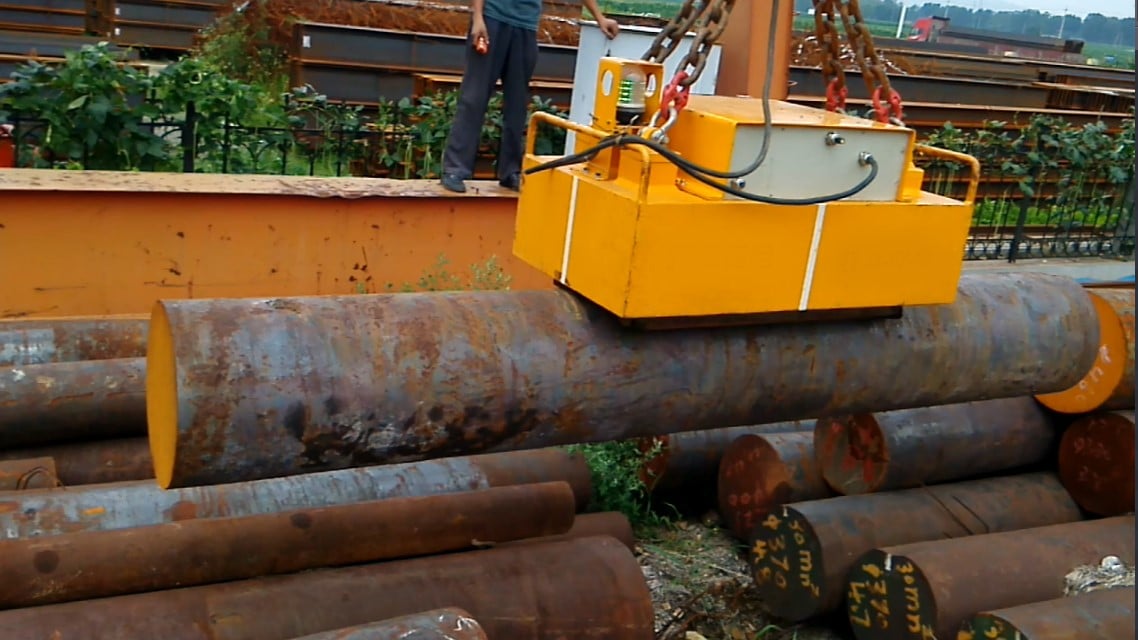

The HR-electro permanent magnetic modules are specifically engineered to provide an exceptional solution for lifting heavy rounds.

Their innovative V-shape design ensures effortless centering of the workpiece, enhancing precision and ease of use.

With their impressive magnetic force, these modules possess the capability to securely lift even the most substantial rounds, making them highly suitable for industrial applications.

Inquiry

FEATURES

Electro permanent magnetic modules in Monoblock construction, including chains and lifting ring.

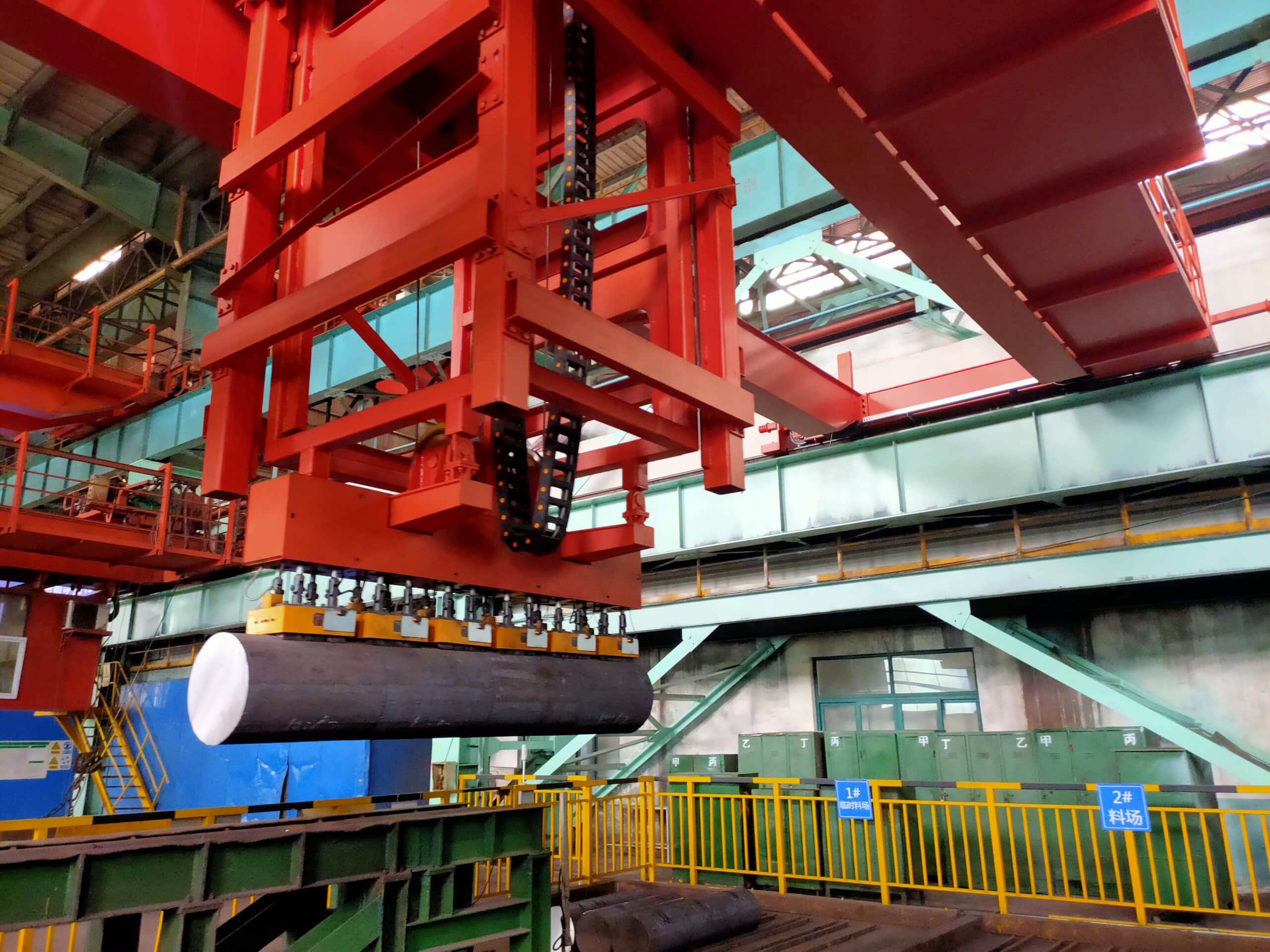

Stand-alone magnetic modules or combined on a Beam.
V-shaped poles for auto centring of the workpiece
High advanced SPC-system (System Performance Check)
Landing detection system to avoid accidental demagnetisation in the air.
Tailor made solutions according to the dimensions of the parts to be lifted and present airgaps.

9 Safety Features

entries per page

Search:

Model	SWL (kg)	Ø min - max (mm)	Length min - max (mm)	Weight (kg)
HR-02-020	2.000	280 - 400	800 - 2.000	250
HR-02-025	2.500	200 - 600	600 - 2.000	400
HR-06-035	3.500	100 - 350	1.000 - 6.000	1.000
HR-02-060	6.000	350 - 810	1.000 - 2.000	1.000
HR-05-080	8.000	300 - 700	1.000 - 5.000	1.500
HR-07-100	10.000	310 - 1.000	1.500 - 7.000	2.700
HR-07-150	15.000	310 - 1.200	1.500 - 7000	2.800

Showing 1 to 7 of 7 entries
