NEOFIX®
Aimants permanents super puissants recouverts de caoutchouc
FIXER DES COMPOSANTS DANS UN ENVIRONNEMENT OFFSHORE
Description
NEOFIX® magnets deliver a durable, reliable, and tool-free fastening solution for demanding industrial environments. Built with strong neodymium magnets, they provide exceptional holding force that remains stable over time—no power loss, no degradation.
Each magnet features a robust EPDM rubber coating. Result? A high friction coefficient for secure attachment on steel surfaces, combined with effective protection against corrosion and surface damage. Ideal where vibration, humidity, or salt exposure come into play.
Inside, an A4 316L stainless-steel threaded insert enables fast mounting of components—without drilling, welding, or structural modification. Installation stays quick, clean, and reversible. Maintenance teams save time. Operations keep moving.
NEOFIX® is a smart alternative to traditional fastening methods. Fewer tools. Less downtime. Lower total cost—without compromising strength or reliability.
Looking for rubber covered magnets that combine strength, speed, and industrial durability?
NEOFIX® delivers fixation—done right.
Key benefits
-
Strong neodymium magnets with long-term magnetic stability
-
Rubber covered magnets for high friction and corrosion resistance
-
Integrated A4 316L stainless-steel thread for easy component mounting
-
Non-invasive installation: no drilling, no welding
-
Reusable, flexible, and maintenance-friendly fixation magnets
Typical industries
-

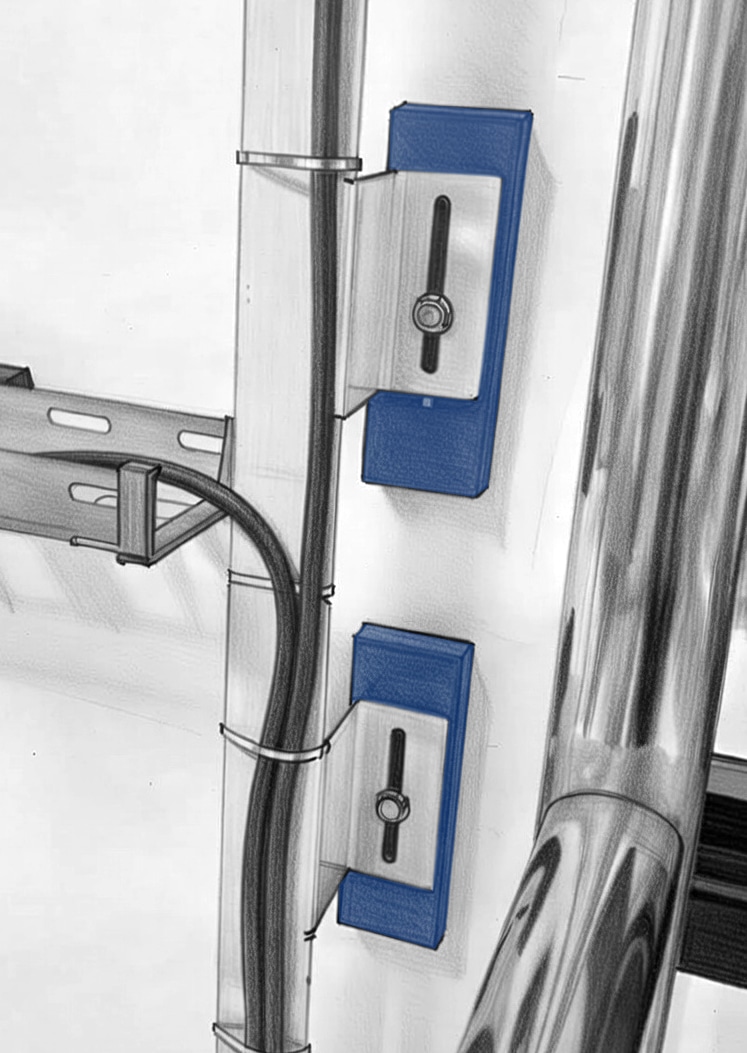

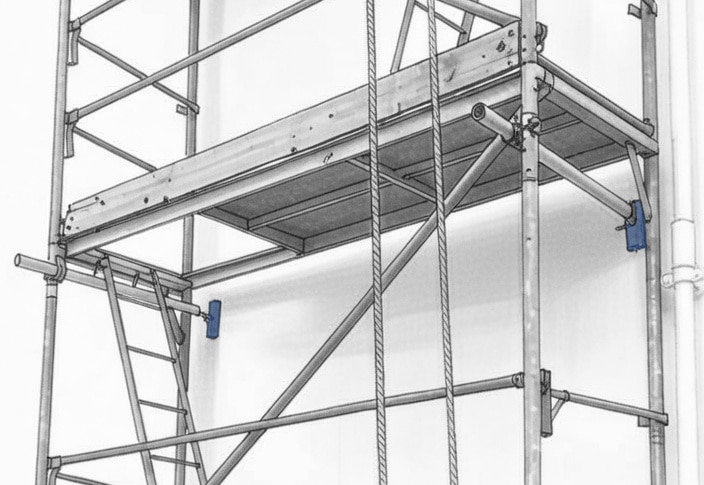

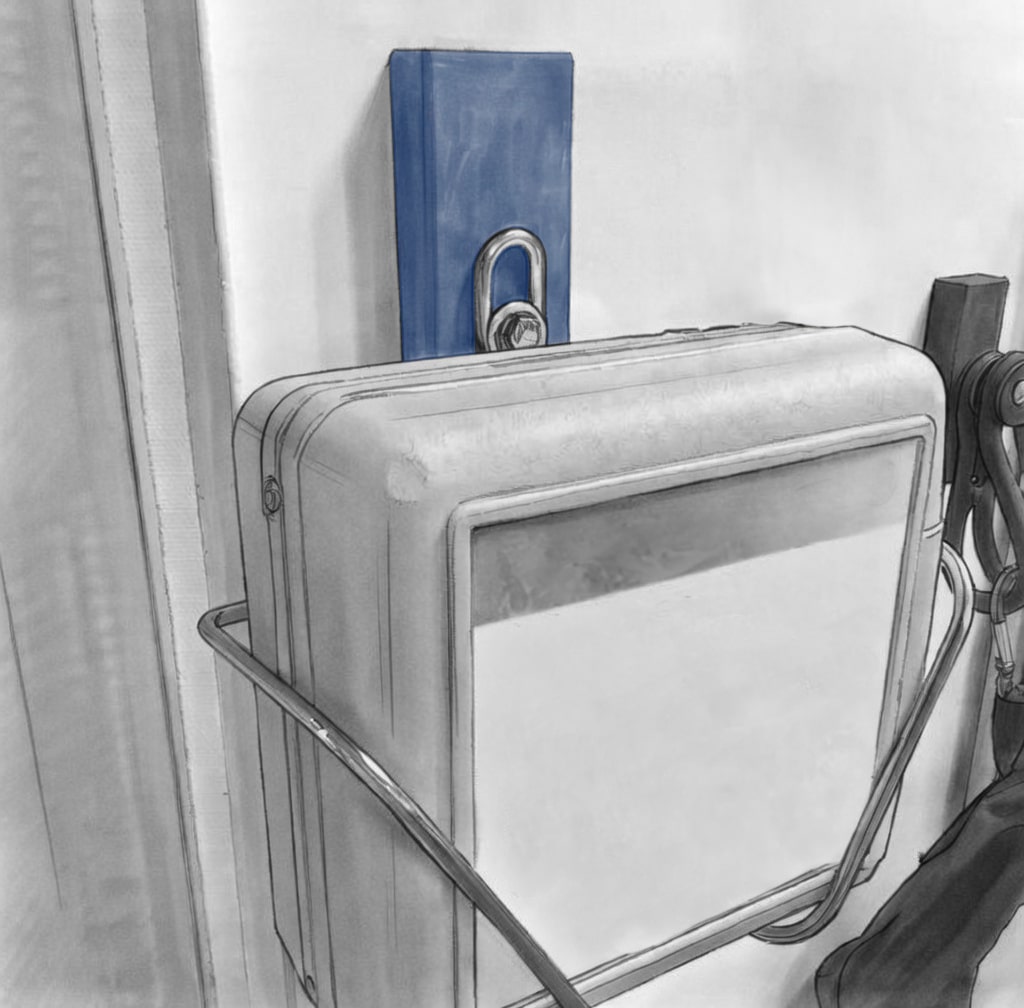

Offshore: temporary and semi-permanent fixation in corrosive environments
-
Shipbuilding: fast mounting of equipment, sensors, and accessories
-
Windmill industry: reliable fixation during installation and maintenance

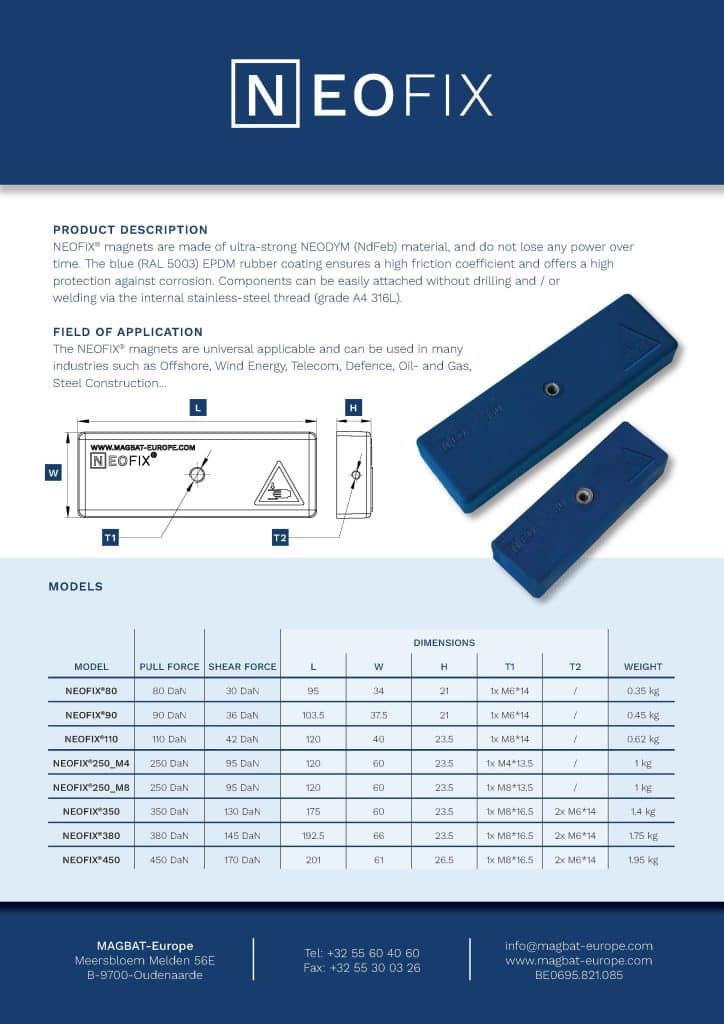

| MODÈLE | L (MM) | l (MM) | T (MM) | HOLDING FORCE (DaN) | SHEAR FORCE (DaN) | TIGE FILLETEE SUPÉRIEURE (M) | CÔTÉ FIL (M) | MAX. TEMP. (°C) | POIDS (KG) | COULEUR |
|---|---|---|---|---|---|---|---|---|---|---|
| NEOFIX®80 | 95 | 34 | 21 | 80 | 30 | 1X M6*14 | - | 60 | 0,35 | BLEU |
| NEOFIX®90 | 103,5 | 37,5 | 21 | 90 | 36 | 1X M6*14 | - | 60 | 0,45 | BLEU |
| NEOFIX®110 | 120 | 40 | 23,5 | 110 | 40 | 1X M8*14 | - | 60 | 0,62 | BLEU |
| NEOFIX®250_M4 | 120 | 60 | 23,5 | 250 | 95 | 1X M4*13,5 | - | 60 | 1,00 | BLEU |
| NEOFIX®250_M8 | 120 | 60 | 23,5 | 250 | 95 | 1X M8*13,5 | - | 60 | 1,00 | BLEU |
| NEOFIX®350 | 175 | 60 | 23,5 | 350 | 130 | 1X M8*16,5 | 2X M6*14 | 60 | 1,4 | BLEU |
| NEOFIX®380 | 192,5 | 66 | 23,5 | 380 | 145 | 1X M8*16,5 | 2X M6*14 | 60 | 1,75 | BLEU |
| NEOFIX®450 | 201 | 61 | 26,5 | 450 | 170 | 1X M8*16,5 | 2X M6*14 | 60 | 1,95 | BLEU |
